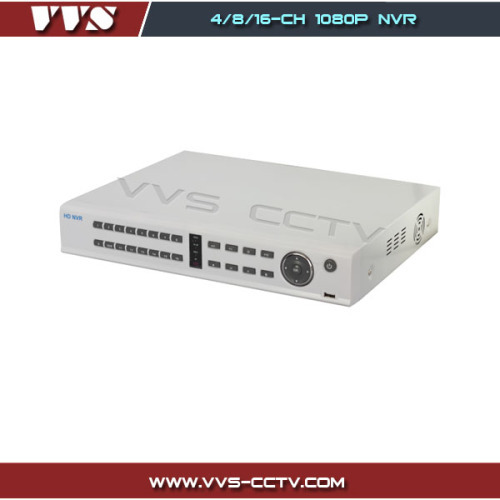

Network Video Recorder - NVR5616 NVR5616 manufacturer from China VVS CCTV Limited

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: NVR5616

Network Video Recorder, Surveillance Products

Module			NVR5616
System			Linux 2.6 Operation system
External Port	VGA output		1-ch VGA output, support 800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz, 1440×900@60Hz
	USB Port		USB2.0, Support USBStorage Device, Mouse, USB
	Net Port		1-ch RJ45 10/100M Auto Adaptable
	Alarm In/Out		4-ch input; 1-ch ouput
	HDMI		1-ch HDMI port
	SATA Port		2 HDD; Max 4TB
VideoParameter
Video	Compression		H.264
	Preview Resolution		Main Steam max 1080P
	Decode/Preview		16-ch HD720P
			HD720(1920*720)
Others	Power supply		DC 12V; 4A
BasicFunctions
Operation Interface		Support graph user interface, built-in navigation information Recording and Alram status shows on desktop and front panel
Recording		Manual, Timing, Alarm, Motion Detection and alarm linkage
Playback		Time bar play mode; Support singalvideo and audio playback
Storage		U disk, USB HDD, USB CD/DVD; H.264 RAW, AVI, MP4 format
Network		IPv4, PPPOE client, DHCP client, TCP/UDP. Web view and CMS. Remote configuration, video review, local recording, local andremote playback, remote PTZ control. Network transmission support independentencode, LAN transmission delay less 300ms
Mobile		Android 2.1~2.3;Symbian V3 and V5, windows mobile 5.5 and 6.1; ipad ios 5; Iphone
PTZ Control		Pelco-P, Pelco-D, Samsung, etc protocols, support protocolsupgrade
Alarm management		Video loss alarm ( can be set via web) Alarm activates recording, linkage PTZ preset, sound alarm, alarmmessage send to web or CMS, and email notification
User management		Multi user management, password setting, and reset, authoritysetting Admin user authority includes all operation, cannot be changed.
Additional		Watchdog, restart after stopping response for 30 seconds
